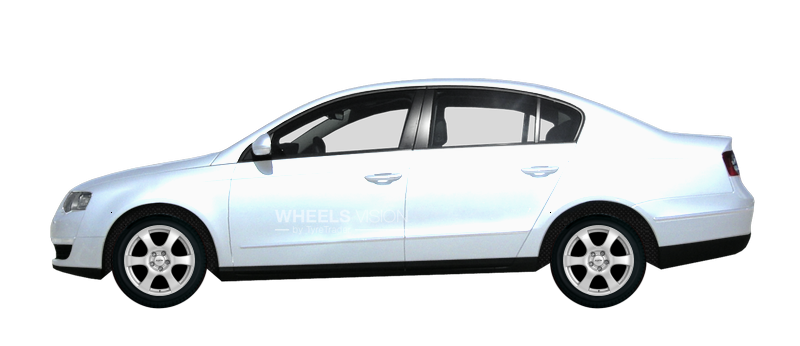

Factory wheels and tyres sizes Volkswagen Passat B6 Sedan (2005 - 2010)

Auto name Common wheels parameters	Factory (Wheels)	Options (Wheels)	Tuning (Wheels)	Factory (tires)	Options (tires)	Tuning (tires)
Volkswagen Passat B6 Sedan (2007 - 2018) 1.8 TSi PCD (PCD) 5x112 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	6,5x16 ET42	7x16 ET45 6x17 ET45 7,5x17 ET47 8x18 ET44		205/55 R16	205/55 R16 215/55 R16 205/50 R17 235/45 R17 235/40 R18
Volkswagen Passat B6 Sedan (2003 - 2019) 2.0 TDi PCD (PCD) 5x112 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	6,5x16 ET42 7x16 ET45	7x16 ET45 6x17 ET45 7,5x17 ET47		205/55 R16 215/55 R16	205/50 R17 205/55 R16 235/45 R17
Volkswagen Passat B6 Sedan (2010 - 2021) 2.0 TSi PCD (PCD) 5x112 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	7x16 ET45	6,5x16 ET42 7x16 ET45 6x17 ET45 6,5x17 ET42 7,5x17 ET47 8x18 ET44		215/55 R16	235/45 R17 235/40 R18 205/55 R16 205/50 R17 215/55 R16
Volkswagen Passat B6 Sedan (1993 - 2008) 1.9 TDi PCD (PCD) 5x112 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	6,5x16 ET42	6,5x16 ET42 7x16 ET45 6x17 ET45 7,5x17 ET47 8x18 ET44		205/55 R16	205/55 R16 215/55 R16 235/45 R17 235/40 R18 205/50 R17
Volkswagen Passat B6 Sedan (2007 - 2018) 1.4 TSi PCD (PCD) 5x112 Hub diameter (Dia,mm) 57.1 Mounting bolt 14x1,5	7x16 ET45 7,5x17 ET47	6,5x16 ET42 6x17 ET45 8x18 ET44		215/55 R16 235/45 R17	205/55 R16 205/50 R17 235/40 R18

Wheels parameters:

For an example of size: 6,5x16 ET42 PCD 5*112 Dia 57.1 , consider the notation for these parameters. - width - 6,5 or 6,5J means the width of the disk shelves in inches
- diameter - 16 or R16 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*112 means 5 holes with a distance of 112.
- Et (ET) -42 or ET42 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -57.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -14*1,5 diameter and thread pitch of the bolt / nut in millimeters

Tyres sizes:

Using the wheel size example 205/55 R16 , consider what these options mean. - Width -205 - tire width in millimeters
- Height -55 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be205 *55 & # 37; = mm
- Diameter -16 or R16 - tire setting diameter
