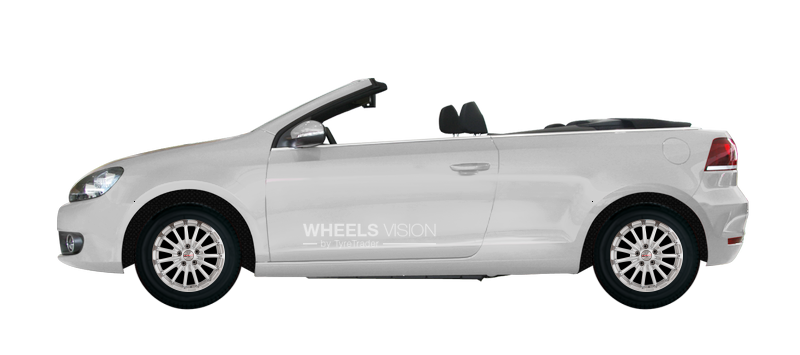

Volkswagen Golf VI Cabriolet (2006 - 2020) 1.4 TSi
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
6x15 ET47 |
6x15 ET47 6,5x15 ET50 6x16 ET50 6,5x16 ET50 6,5x17 ET50 7x17 ET54 |
195/65 R15 |
205/55 R16 205/50 R17 195/65 R15 205/60 R15 225/45 R17 |
||
|
Volkswagen Golf VI Cabriolet (2007 - 2021) 2.0 TDi
PCD (PCD) 5x112
Hub diameter (Dia,mm) 57.1
Mounting bolt 14x1,5
|
6,5x16 ET50 |
6x16 ET50 6,5x17 ET50 7x17 ET54 |
205/55 R16 |
225/45 R17 205/55 R16 205/50 R17 |
For an example of size: 6x15 ET47 PCD 5*112 Dia 57.1 , consider the notation for these parameters.
- width - 6 or 6J means the width of the disk shelves in inches
- diameter - 15 or R15 is the installation of the wheel size in inches
- Between the bolt distance (PCD) and number of holes - 5*112 means 5 holes with a distance of 112.
- Et (ET) -47 or ET47 is the distance from the geometric center of the disk shelf to the fitting point to the hub in millimeters. The smaller the flyout, the more the drive is out
- Dia -57.1 the size of the hub in millimeters. Sometimes indicated without a fractional part
- Bolt -14*1,5 diameter and thread pitch of the bolt / nut in millimeters
Using the wheel size example 195/65 R15 , consider what these options mean.
- Width -195 - tire width in millimeters
- Height -65 - this value is specified in percent. The height of the wheel profile in millimeters is calculated as a percentage of the width, for our case this will be195 *65 & # 37; = mm
- Diameter -15 or R15 - tire setting diameter
